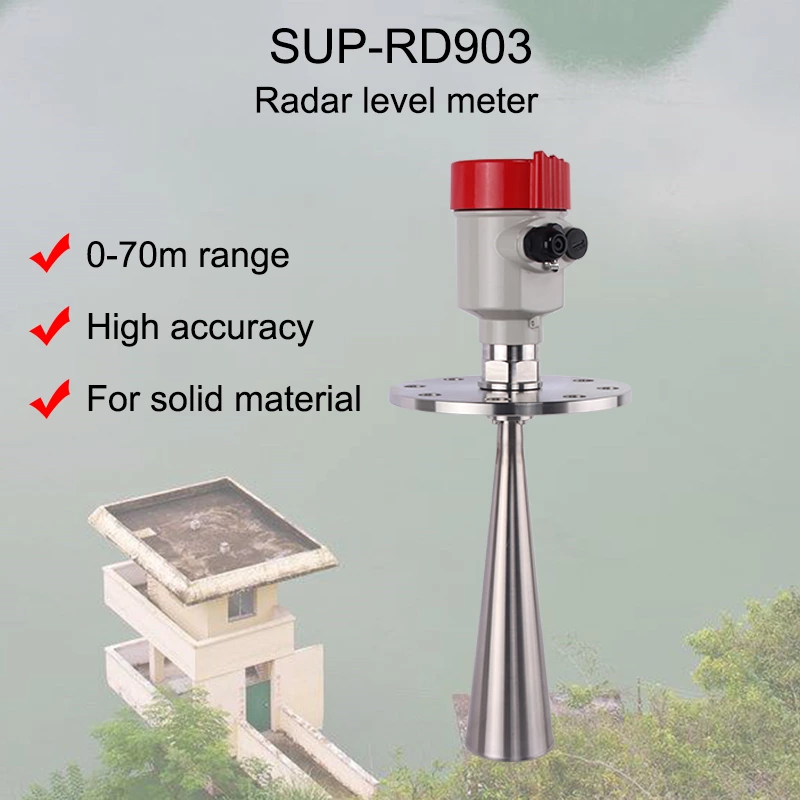

SUP-RD903 Solid material radar level meter

SUP-RD903 Solid material radar level meter with high frequency, measurement of solid material, strong dust, easy to crystallize, condensation occasion

Characteristics

  • Range: 0~70 m
  • Application:  Solid material, strong dust, easy to crystallize, condensation occasion
  • Frequency Range: 26GHz



Tel.: +86 15868103947 (WhatApp)

Email : info@supmea.com

  • Specification



 Product  Radar level meter
 Model SUP-RD903
 Accuracy ±20mm (range 30m)
±30mm (range 70m)
 Application Solid material, strong dust, easy to crystallize, condensation occasion
 Process Connection Universal flange
 Medium Temperature -40℃~250℃
 Process Pressure    -0.1 ~ 0.3 MPa (universal flange); -0.1~4.0 MPa (flat flange)
 Ingress protection IP67
 Frequency Range 26GHz
 Signal Output 4-20mA (Two-wire/Four)
RS485/Modbus
 Power supply 2-wire(DC24V)/ 4-wire(DC24V /AC220V)



  • Introduction

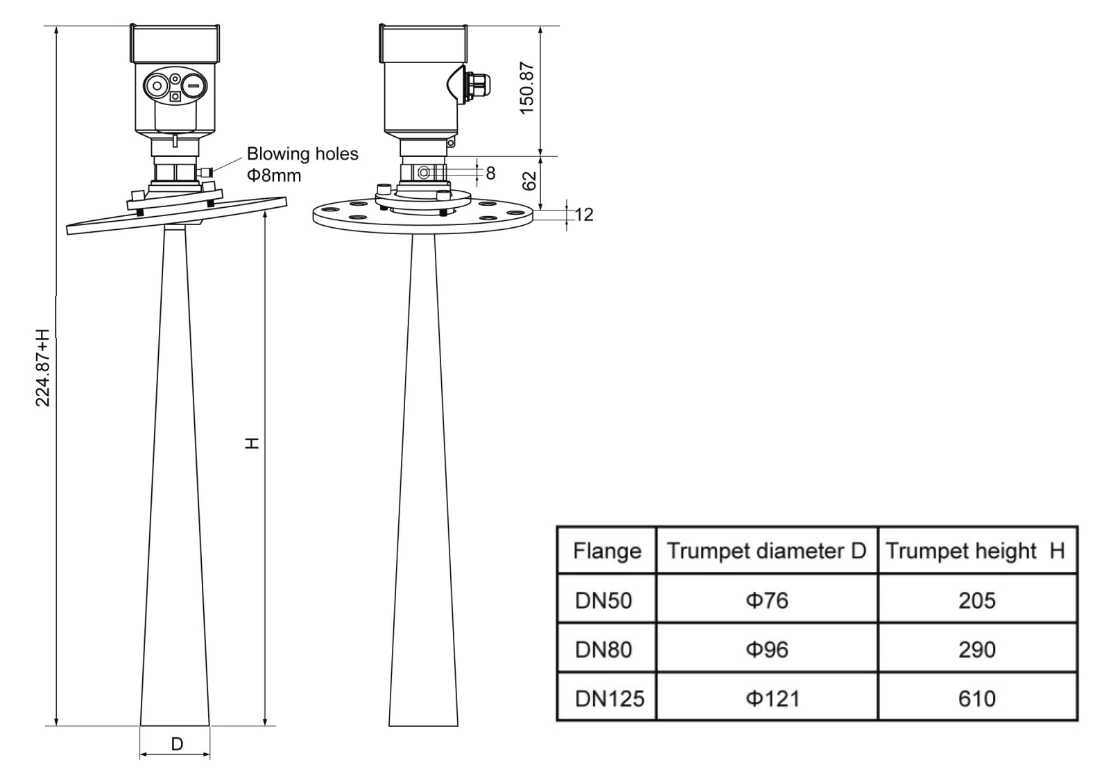

  • Product Size






  • Installation guide
level meter level meter level meter
Be installed in the diameter of the 1/4 or 1/6.    Note: The minimum distance from the tank  wall should be 200mm. Note:  ① datum  ②The container center or axis of symmetry The top conical tank level, can be installed at  the top of the tank is intermediate, can guarantee  the measurement to the conical bottom  A feed antenna to the vertical alignment surface.    If the surface is rough, stack angle must be used   to adjust the angle of cardan flange of the antenna   to the alignment surface.    (Due to the solid surface tilt will cause the echo attenuation, even Loss of signal.)
