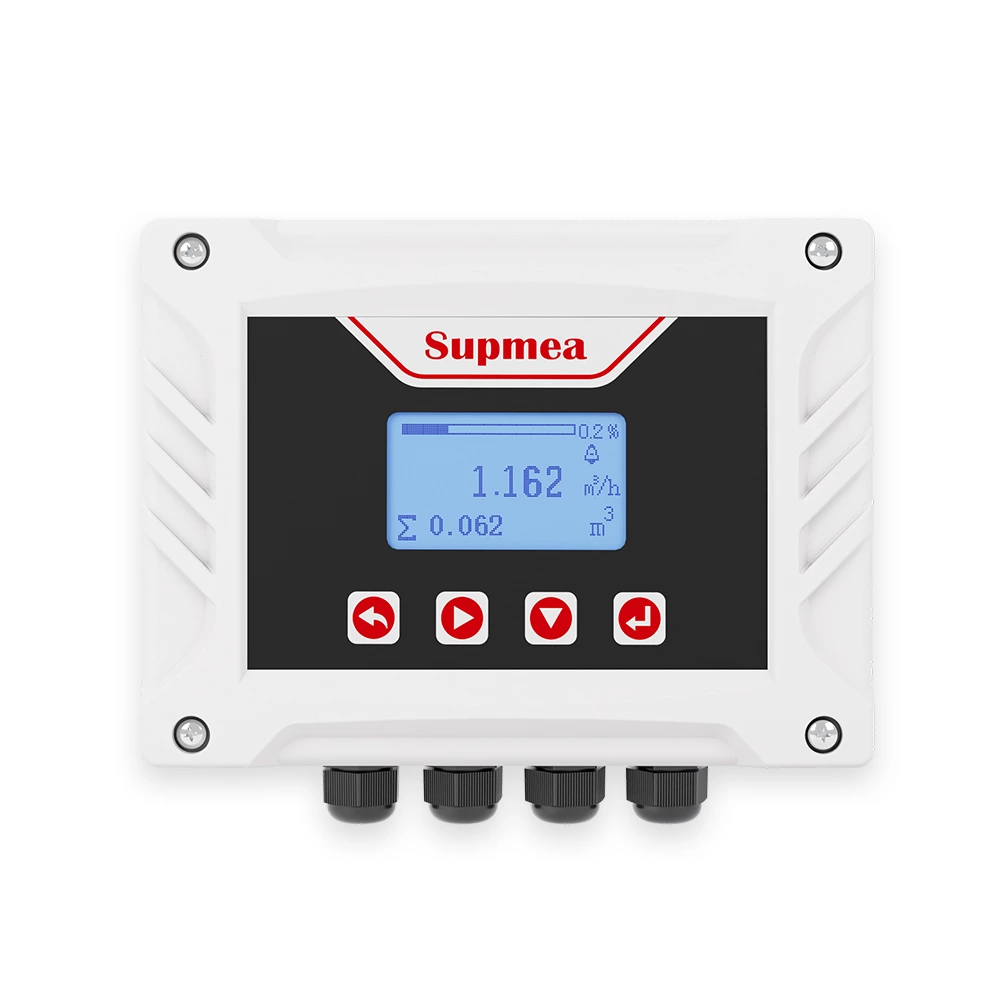

Magnetic flow transmitter

Electromagnetic flow transmitter adopts LCD indicator and "simple setting" parameters to improve the convenience of maintenance. The flow sensor diameter, lining material, electrode material, flow coefficient can be revised, and the intelligent diagnosis function significantly improves the applicability of the flow transmitter.And Supmea electromagnetic flow transmitter supports customized appearance color and surface stickers.

Characteristics

Graphic display: 128 * 64

Output: Current (4-20 mA), pulse frequency, mode switch value

Serial communication: RS485

  • Specification
Measuring principle Faraday's law of induction
Function Instantaneous flow rate, flow velocity, mass flow (when the density is constant)

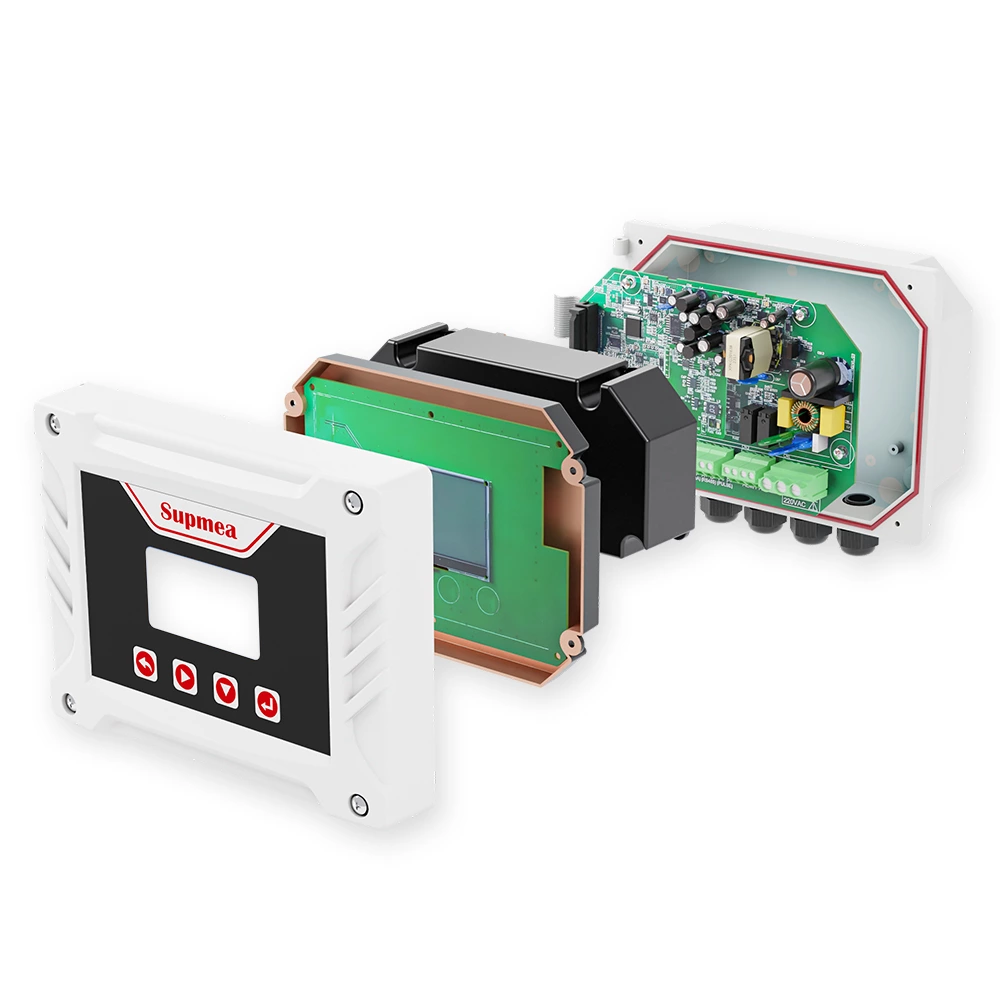

Modular structure Measuring system is composed of a measuring sensor and a signal converter
Serial communication RS485
Output Current (4-20 mA), pulse frequency, mode switch value
Function Empty pipe identification, electrode pollution
Graphic display Monochrome liquid crystal display, white backlight; Size: 128 * 64 pixels
Display function 2 measurements picture (measurements, status, etc.)
Language English
Unit Can choose units through configuration, see "6.4 configuration details"  "1-1 flow rate unit".
Operation buttons Four infrared touch key/mechanical
